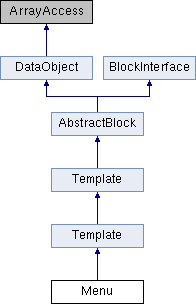

Inheritance diagram for Menu:

Public Member Functions
	__construct (\Magento\Backend\Block\Template\Context $context, \Magento\Backend\Model\UrlInterface $url, \Magento\Backend\Model\Menu\Filter\IteratorFactory $iteratorFactory, \Magento\Backend\Model\Auth\Session $authSession, \Magento\Backend\Model\Menu\Config $menuConfig, \Magento\Framework\Locale\ResolverInterface $localeResolver, array $data=[], MenuItemChecker $menuItemChecker=null, AnchorRenderer $anchorRenderer=null, \Magento\Framework\App\Route\ConfigInterface $routeConfig=null)

	getCacheLifetime ()

	getCacheKeyInfo ()

	getMenuModel ()

	getActiveItemModel ()

Public Member Functions inherited from Template
	__construct (\Magento\Backend\Block\Template\Context $context, array $data=[])

	getFormKey ()

	isOutputEnabled ($moduleName=null)

	getAuthorization ()

	getToolbar ()

Public Member Functions inherited from Template
	__construct (Template\Context $context, array $data=[])

	setTemplateContext ($templateContext)

	getTemplate ()

	setTemplate ($template)

	getTemplateFile ($template=null)

	getArea ()

	assign ($key, $value=null)

	fetchView ($fileName)

	getBaseUrl ()

	getObjectData (\Magento\Framework\DataObject $object, $key)

	getCacheKeyInfo ()

Public Member Functions inherited from AbstractBlock
	__construct (\Magento\Framework\View\Element\Context $context, array $data=[])

	getJsLayout ()

	getRequest ()

	getParentBlock ()

	setLayout (\Magento\Framework\View\LayoutInterface $layout)

	getLayout ()

	setNameInLayout ($name)

	getChildNames ()

	setAttribute ($name, $value=null)

	setChild ($alias, $block)

	addChild ($alias, $block, $data=[])

	unsetChild ($alias)

	unsetCallChild ($alias, $callback, $result, $params)

	unsetChildren ()

	getChildBlock ($alias)

	getChildHtml ($alias='', $useCache=true)

	getChildChildHtml ($alias, $childChildAlias='', $useCache=true)

	getBlockHtml ($name)

	insert ($element, $siblingName=0, $after=true, $alias='')

	append ($element, $alias='')

	getGroupChildNames ($groupName)

	getChildData ($alias, $key='')

	getUiId ($arg1=null, $arg2=null, $arg3=null, $arg4=null, $arg5=null)

	getJsId ($arg1=null, $arg2=null, $arg3=null, $arg4=null, $arg5=null)

	getUrl ($route='', $params=[])

	getViewFileUrl ($fileId, array $params=[])

	formatDate ( $date=null, $format=\IntlDateFormatter::SHORT, $showTime=false, $timezone=null)

	formatTime ( $time=null, $format=\IntlDateFormatter::SHORT, $showDate=false)

	getModuleName ()

	escapeHtml ($data, $allowedTags=null)

	escapeJs ($string)

	escapeHtmlAttr ($string, $escapeSingleQuote=true)

	escapeCss ($string)

	stripTags ($data, $allowableTags=null, $allowHtmlEntities=false)

	escapeUrl ($string)

	escapeXssInUrl ($data)

	escapeQuote ($data, $addSlashes=false)

	escapeJsQuote ($data, $quote='\'')

	getNameInLayout ()

	getCacheKeyInfo ()

	getCacheKey ()

	getVar ($name, $module=null)

	isScopePrivate ()

Public Member Functions inherited from DataObject
	__construct (array $data=[])

	addData (array $arr)

	setData ($key, $value=null)

	unsetData ($key=null)

	getData ($key='', $index=null)

	getDataByPath ($path)

	getDataByKey ($key)

	setDataUsingMethod ($key, $args=[])

	getDataUsingMethod ($key, $args=null)

	hasData ($key='')

	toArray (array $keys=[])

	convertToArray (array $keys=[])

	toXml (array $keys=[], $rootName='item', $addOpenTag=false, $addCdata=true)

	convertToXml (array $arrAttributes=[], $rootName='item', $addOpenTag=false, $addCdata=true)

	toJson (array $keys=[])

	convertToJson (array $keys=[])

	toString ($format='')

	__call ($method, $args)

	isEmpty ()

	serialize ($keys=[], $valueSeparator='=', $fieldSeparator=' ', $quote='"')

	debug ($data=null, &$objects=[])

	offsetSet ($offset, $value)

	offsetExists ($offset)

	offsetUnset ($offset)

	offsetGet ($offset)

Public Member Functions inherited from BlockInterface
	toHtml ()

Data Fields
const	CACHE_TAGS = 'BACKEND_MAINMENU'

Data Fields inherited from Template
const	XML_PATH_TEMPLATE_ALLOW_SYMLINK = 'dev/template/allow_symlink'

Data Fields inherited from AbstractBlock
const	CACHE_GROUP = \Magento\Framework\App\Cache\Type\Block::TYPE_IDENTIFIER

const	CACHE_KEY_PREFIX = 'BLOCK_'

Protected Member Functions
	_construct ()

	_getAnchorLabel ($menuItem)

	_renderMouseEvent ($menuItem)

	_renderItemCssClass ($menuItem, $level)

	_getMenuIterator ($menu)

	_afterToHtml ($html)

	_callbackSecretKey ($match)

	_columnBrake ($items, $limit)

	_addSubMenu ($menuItem, $level, $limit, $id=null)

Protected Member Functions inherited from Template
	_toHtml ()

Protected Member Functions inherited from Template
	_construct ()

	_toHtml ()

	getRootDirectory ()

	getMediaDirectory ()

Protected Member Functions inherited from AbstractBlock
	_construct ()

	_prepareLayout ()

	_beforeToHtml ()

	_afterToHtml ($html)

	_toHtml ()

	_getNotFoundUrl ($route='', $params=['_direct'=> 'core/index/notFound'])

	getCacheTags ()

	getCacheLifetime ()

	_loadCache ()

	_saveCache ($data)

	_getSidPlaceholder ($cacheKey=null)

Protected Member Functions inherited from DataObject
	_getData ($key)

	_underscore ($name)

Protected Attributes
	$_containerRenderer

	$_itemRenderer

	$_url

	$_activeItemModel = null

	$_iteratorFactory

	$_authSession

	$_menuConfig

	$_localeResolver

Protected Attributes inherited from Template
	$_authorization

	$mathRandom

	$_backendSession

	$formKey

	$nameBuilder

Protected Attributes inherited from Template
	$_viewVars = []

	$_baseUrl

	$_jsUrl

	$_allowSymlinks

	$_filesystem

	$_template

	$templateEnginePool

	$_storeManager

	$_appState

	$directory

	$templateContext

	$pageConfig

	$resolver

	$validator

Protected Attributes inherited from AbstractBlock
	$_design

	$_session

	$_sidResolver

	$_nameInLayout

	$_layout

	$jsLayout = []

	$_request

	$_urlBuilder

	$_eventManager

	$_frontController

	$_assetRepo

	$_viewConfig

	$_cacheState

	$_logger

	$_escaper

	$filterManager

	$_localeDate

	$inlineTranslation

	$_isScopePrivate = false

	$_scopeConfig

	$_cache

Protected Attributes inherited from DataObject
	$_data = []

Additional Inherited Members
Static Public Member Functions inherited from AbstractBlock
static	extractModuleName ($className)

Static Protected Attributes inherited from DataObject
static	$_underscoreCache = []

Detailed Description

Backend menu block

@method $this setAdditionalCacheKeyInfo(array $cacheKeyInfo) @method array getAdditionalCacheKeyInfo() @api

Since: 100.0.2

@SuppressWarnings(PHPMD.CouplingBetweenObjects)

Definition at line 19 of file Menu.php.

Constructor & Destructor Documentation

◆ __construct()

__construct	(	\Magento\Backend\Block\Template\Context	$context,
		\Magento\Backend\Model\UrlInterface	$url,
		\Magento\Backend\Model\Menu\Filter\IteratorFactory	$iteratorFactory,
		\Magento\Backend\Model\Auth\Session	$authSession,
		\Magento\Backend\Model\Menu\Config	$menuConfig,
		\Magento\Framework\Locale\ResolverInterface	$localeResolver,
		array	$data = `[]`,
		MenuItemChecker	$menuItemChecker = `null`,
		AnchorRenderer	$anchorRenderer = `null`,
		\Magento\Framework\App\Route\ConfigInterface	$routeConfig = `null`
	)

Parameters

\Magento\Backend\Block\Template\Context	$context
\Magento\Backend\Model\UrlInterface	$url
\Magento\Backend\Model\Menu\Filter\IteratorFactory	$iteratorFactory
\Magento\Backend\Model\Auth\Session	$authSession
\Magento\Backend\Model\Menu\Config	$menuConfig
\Magento\Framework\Locale\ResolverInterface	$localeResolver
array	$data
MenuItemChecker \| null	$menuItemChecker
AnchorRenderer \| null	$anchorRenderer
\Magento\Framework\App\Route\ConfigInterface \| null	$routeConfig	@SuppressWarnings(PHPMD.ExcessiveParameterList)

Definition at line 96 of file Menu.php.

       {
         $this->_url = $url;
         $this->_iteratorFactory = $iteratorFactory;
         $this->_authSession = $authSession;
         $this->_menuConfig = $menuConfig;
         $this->_localeResolver = $localeResolver;
         $this->menuItemChecker =  $menuItemChecker;
         $this->anchorRenderer = $anchorRenderer;
         $this->routeConfig = $routeConfig ?:
             \Magento\Framework\App\ObjectManager::getInstance()
                 ->get(\Magento\Framework\App\Route\ConfigInterface::class);
         parent::__construct($context, $data);
     }

Member Function Documentation

◆ _addSubMenu()

_addSubMenu	(	$menuItem,
		$level,
		$limit,
		$id = `null`
	)

protected

Add sub menu HTML code for current menu item

Parameters

\Magento\Backend\Model\Menu\Item	$menuItem
int	$level
int	$limit
int \| null	$id

Returns: string HTML code

Definition at line 362 of file Menu.php.

     {
         $output = '';
         if (!$menuItem->hasChildren()) {
             return $output;
         }
         $output .= '<div class="submenu"' . ($level == 0 && isset($id) ? ' aria-labelledby="' . $id . '"' : '') . '>';
         $colStops = [];
         if ($level == 0 && $limit) {
             $colStops = $this->_columnBrake($menuItem->getChildren(), $limit);
             $output .= '<strong class="submenu-title">' . $this->_getAnchorLabel($menuItem) . '</strong>';
             $output .= '<a href="#" class="action-close _close" data-role="close-submenu"></a>';
         }

         $output .= $this->renderNavigation($menuItem->getChildren(), $level + 1, $limit, $colStops);
         $output .= '</div>';
         return $output;
     }

◆ _afterToHtml()

_afterToHtml ( $html )

protected

Processing block html after rendering

Parameters

string $html

Returns: string

Definition at line 200 of file Menu.php.

     {
         $html = preg_replace_callback(
             '#' . \Magento\Backend\Model\UrlInterface::SECRET_KEY_PARAM_NAME . '/\$([^\/].*)/([^\/].*)/([^\$].*)\$#U',
             [$this, '_callbackSecretKey'],
             $html
         );

         return $html;
     }

◆ _callbackSecretKey()

_callbackSecretKey ( $match )

protected

Replace Callback Secret Key

Parameters

string[] $match

Returns: string

Definition at line 217 of file Menu.php.

     {
         $routeId = $this->routeConfig->getRouteByFrontName($match[1]);
         return \Magento\Backend\Model\UrlInterface::SECRET_KEY_PARAM_NAME . '/' . $this->_url->getSecretKey(
             $routeId ?: $match[1],
             $match[2],
             $match[3]
         );
     }

◆ _columnBrake()

_columnBrake	(	$items,
		$limit
	)

protected

Building Array with Column Brake Stops

Parameters

\Magento\Backend\Model\Menu	$items
int	$limit

Returns: array|void

Todo:: : Add Depth Level limit, and better logic for columns

Definition at line 328 of file Menu.php.

     {
         $total = $this->_countItems($items);
         if ($total <= $limit) {
             return;
         }
         $result[] = ['total' => $total, 'max' => ceil($total / ceil($total / $limit))];
         $count = 0;
         foreach ($items as $item) {
             $place = $this->_countItems($item->getChildren()) + 1;
             $count += $place;
             if ($place - $result[0]['max'] > $limit - $result[0]['max']) {
                 $colbrake = true;
                 $count = 0;
             } elseif ($count - $result[0]['max'] > $limit - $result[0]['max']) {
                 $colbrake = true;
                 $count = $place;
             } else {
                 $colbrake = false;
             }
             $result[] = ['place' => $place, 'colbrake' => $colbrake];
         }
         return $result;
     }

◆ _construct()

_construct ( )

protected

Initialize template and cache settings

Returns: void

Definition at line 126 of file Menu.php.

     {
         parent::_construct();
         $this->setCacheTags([self::CACHE_TAGS]);
     }

◆ _getAnchorLabel()

_getAnchorLabel ( $menuItem )

protected

Render menu item anchor label

Parameters

\Magento\Backend\Model\Menu\Item $menuItem

Returns: string

Definition at line 138 of file Menu.php.

     {
         return $this->escapeHtml(__($menuItem->getTitle()));
     }

◆ _getMenuIterator()

_getMenuIterator ( $menu )

protected

Get menu filter iterator

Parameters

\Magento\Backend\Model\Menu $menu

Returns: \Magento\Backend\Model\Menu\Filter\Iterator

Definition at line 189 of file Menu.php.

     {
         return $this->_iteratorFactory->create(['iterator' => $menu->getIterator()]);
     }

◆ _renderItemCssClass()

_renderItemCssClass	(	$menuItem,
		$level
	)

protected

Render item css class

Parameters

\Magento\Backend\Model\Menu\Item	$menuItem
int	$level

Returns: string

Definition at line 163 of file Menu.php.

     {
         $isLast = 0 == $level && (bool)$this->getMenuModel()->isLast($menuItem) ? 'last' : '';
         $isItemActive = $this->menuItemChecker->isItemActive(
             $this->getActiveItemModel(),
             $menuItem,
             $level
         ) ? '_current _active' : '';

         $output =  $isItemActive .
             ' ' .
             ($menuItem->hasChildren() ? 'parent' : '') .
             ' ' .
             $isLast .
             ' ' .
             'level-' .
             $level;
         return $output;
     }

◆ _renderMouseEvent()

_renderMouseEvent ( $menuItem )

protected

Render menu item mouse events

Parameters

\Magento\Backend\Model\Menu\Item $menuItem

Returns: string

Definition at line 149 of file Menu.php.

     {
         return $menuItem->hasChildren()
             ? 'onmouseover="Element.addClassName(this,\'over\')" onmouseout="Element.removeClassName(this,\'over\')"'
             : '';
     }

◆ getActiveItemModel()

getActiveItemModel ( )

Get current selected menu item

Returns: \Magento\Backend\Model\Menu\Item|false

Definition at line 434 of file Menu.php.

     {
         if ($this->_activeItemModel === null) {
             $this->_activeItemModel = $this->getMenuModel()->get($this->getActive());
             if (false == $this->_activeItemModel instanceof \Magento\Backend\Model\Menu\Item) {
                 $this->_activeItemModel = false;
             }
         }
         return $this->_activeItemModel;
     }

◆ getCacheKeyInfo()

getCacheKeyInfo ( )

Get Key pieces for caching block content

Returns: array

Definition at line 242 of file Menu.php.

     {
         $cacheKeyInfo = [
             'admin_top_nav',
             $this->getActive(),
             $this->_authSession->getUser()->getId(),
             $this->_localeResolver->getLocale(),
         ];
         // Add additional key parameters if needed
         $newCacheKeyInfo = $this->getAdditionalCacheKeyInfo();
         if (is_array($newCacheKeyInfo) && !empty($newCacheKeyInfo)) {
             $cacheKeyInfo = array_merge($cacheKeyInfo, $newCacheKeyInfo);
         }
         return $cacheKeyInfo;
     }

◆ getCacheLifetime()

getCacheLifetime ( )

Retrieve cache lifetime

Returns: int

Definition at line 232 of file Menu.php.

     {
         return 86400;
     }

◆ getMenuModel()

getMenuModel ( )

Get menu config model

Returns: \Magento\Backend\Model\Menu

Definition at line 263 of file Menu.php.

     {
         return $this->_menuConfig->getMenu();
     }

Field Documentation

◆ $_activeItemModel

$_activeItemModel = null

protected

Definition at line 45 of file Menu.php.

◆ $_authSession

$_authSession

protected

Definition at line 55 of file Menu.php.

◆ $_containerRenderer

$_containerRenderer

protected

Definition at line 26 of file Menu.php.

◆ $_itemRenderer

$_itemRenderer

protected

Definition at line 31 of file Menu.php.

◆ $_iteratorFactory

$_iteratorFactory

protected

Definition at line 50 of file Menu.php.

◆ $_localeResolver

$_localeResolver

protected

Definition at line 65 of file Menu.php.

◆ $_menuConfig

$_menuConfig

protected

Definition at line 60 of file Menu.php.

◆ $_url

$_url

protected

Definition at line 38 of file Menu.php.

◆ CACHE_TAGS

const CACHE_TAGS = 'BACKEND_MAINMENU'

Definition at line 21 of file Menu.php.

The documentation for this class was generated from the following file:

vendor/magento/module-backend/Block/Menu.php

Public Member Functions

Data Fields

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ __construct()

Member Function Documentation

◆ _addSubMenu()

◆ _afterToHtml()

◆ _callbackSecretKey()

◆ _columnBrake()

◆ _construct()

◆ _getAnchorLabel()

◆ _getMenuIterator()

◆ _renderItemCssClass()

◆ _renderMouseEvent()

◆ getActiveItemModel()

◆ getCacheKeyInfo()

◆ getCacheLifetime()

◆ getMenuModel()

Field Documentation

◆ $_activeItemModel

◆ $_authSession

◆ $_containerRenderer

◆ $_itemRenderer

◆ $_iteratorFactory

◆ $_localeResolver

◆ $_menuConfig

◆ $_url

◆ CACHE_TAGS
