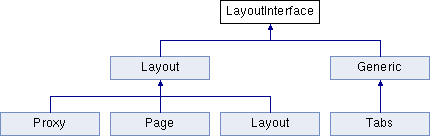

Inheritance diagram for LayoutInterface:

Public Member Functions
	getUpdate ()

	generateXml ()

	generateElements ()

	renderElement ($name, $useCache=true)

	addOutputElement ($name)

	getOutput ()

	hasElement ($name)

	unsetElement ($name)

	getAllBlocks ()

	getBlock ($name)

	getChildBlock ($parentName, $alias)

	setChild ($parentName, $elementName, $alias)

	reorderChild ($parentName, $childName, $offsetOrSibling, $after=true)

	unsetChild ($parentName, $alias)

	getChildNames ($parentName)

	getChildBlocks ($parentName)

	getChildName ($parentName, $alias)

	addToParentGroup ($blockName, $parentGroupName)

	getGroupChildNames ($blockName, $groupName)

	getParentName ($childName)

	createBlock ($type, $name='', array $arguments=[])

	addBlock ($block, $name='', $parent='', $alias='')

	addContainer ($name, $label, array $options=[], $parent='', $alias='')

	renameElement ($oldName, $newName)

	getElementAlias ($name)

	removeOutputElement ($name)

	getMessagesBlock ()

	getBlockSingleton ($type)

	getElementProperty ($name, $attribute)

	isBlock ($name)

	isContainer ($name)

	isManipulationAllowed ($name)

	setBlock ($name, $block)

	isCacheable ()

Detailed Description

Interface LayoutInterface @api

Since: 100.0.2

Definition at line 13 of file LayoutInterface.php.

Member Function Documentation

◆ addBlock()

addBlock	(	$block,
		$name = `''`,
		$parent = `''`,
		$alias = `''`
	)

Add a block to registry, create new object if needed

Parameters

string \| \Magento\Framework\View\Element\AbstractBlock	$block
string	$name
string	$parent
string	$alias

Returns: Element\BlockInterface

Implemented in Layout, and Proxy.

◆ addContainer()

addContainer	(		$name,
			$label,
		array	$options = `[]`,
			$parent = `''`,
			$alias = `''`
	)

Insert container into layout structure

Parameters

string	$name
string	$label
array	$options
string	$parent
string	$alias

Returns: void

Implemented in Proxy.

◆ addOutputElement()

addOutputElement ( $name )

Add an element to output

Parameters

string $name

Returns: LayoutInterface

Implemented in Layout, and Proxy.

◆ addToParentGroup()

addToParentGroup	(	$blockName,
		$parentGroupName
	)

Add element to parent group

Parameters

string	$blockName
string	$parentGroupName

Returns: bool

Implemented in Layout, and Proxy.

◆ createBlock()

createBlock	(		$type,
			$name = `''`,
		array	$arguments = `[]`
	)

Block Factory

Parameters

string	$type
string	$name
array	$arguments

Returns: Element\BlockInterface

Implemented in Layout, and Proxy.

◆ generateElements()

generateElements ( )

Create structure of elements from the loaded XML configuration

Returns: void

Implemented in Layout, and Proxy.

◆ generateXml()

generateXml ( )

Layout xml generation

Returns: LayoutInterface

Implemented in Layout, and Proxy.

◆ getAllBlocks()

getAllBlocks ( )

Retrieve all blocks from registry as array

Returns: array

Implemented in Layout, and Proxy.

◆ getBlock()

getBlock ( $name )

Get block object by name

Parameters

string $name

Returns: Element\BlockInterface|bool

Implemented in Layout, and Proxy.

◆ getBlockSingleton()

getBlockSingleton ( $type )

Get block singleton

Parameters

string $type

Returns: Element\BlockInterface

Implemented in Layout, and Proxy.

◆ getChildBlock()

getChildBlock	(	$parentName,
		$alias
	)

Get child block if exists

Parameters

string	$parentName
string	$alias

Returns: null

Implemented in Layout, and Proxy.

◆ getChildBlocks()

getChildBlocks ( $parentName )

Get list of child blocks

Returns associative array of <alias> => <block instance>="">

Parameters

string $parentName

Returns: array

Implemented in Layout, and Proxy.

◆ getChildName()

getChildName	(	$parentName,
		$alias
	)

Get child name by alias

Parameters

string	$parentName
string	$alias

Returns: bool|string

Implemented in Layout, and Proxy.

◆ getChildNames()

getChildNames ( $parentName )

Get list of child names

Parameters

string $parentName

Returns: array

Implemented in Layout, and Proxy.

◆ getElementAlias()

getElementAlias ( $name )

Get element alias by name

Parameters

string $name

Returns: bool|string

Implemented in Layout, and Proxy.

◆ getElementProperty()

getElementProperty	(	$name,
		$attribute
	)

Get property value of an element

Parameters

string	$name
string	$attribute

Returns: mixed

Implemented in Layout, and Proxy.

◆ getGroupChildNames()

getGroupChildNames	(	$blockName,
		$groupName
	)

Get element names for specified group

Parameters

string	$blockName
string	$groupName

Returns: array

Implemented in Layout, and Proxy.

◆ getMessagesBlock()

getMessagesBlock ( )

Retrieve messages block

Returns: \Magento\Framework\View\Element\Messages

Implemented in Layout, and Proxy.

◆ getOutput()

getOutput ( )

Get all blocks marked for output

Returns: string

Implemented in Layout, and Proxy.

◆ getParentName()

getParentName ( $childName )

Gets parent name of an element with specified name

Parameters

string $childName

Returns: bool|string

Implemented in Layout, and Proxy.

◆ getUpdate()

getUpdate ( )

Retrieve the layout processor

Returns: Layout\ProcessorInterface

Implemented in Layout, and Proxy.

◆ hasElement()

hasElement ( $name )

Check if element exists in layout structure

Parameters

string $name

Returns: bool

Implemented in Layout, and Proxy.

◆ isBlock()

isBlock ( $name )

Whether specified element is a block

Parameters

string $name

Returns: bool

Implemented in Layout, and Proxy.

◆ isCacheable()

isCacheable ( )

Check is exists non-cacheable layout elements

Returns: bool

Implemented in Layout, Proxy, and Layout.

◆ isContainer()

isContainer ( $name )

Checks if element with specified name is container

Parameters

string $name

Returns: bool

Implemented in Layout, and Proxy.

◆ isManipulationAllowed()

isManipulationAllowed ( $name )

Whether the specified element may be manipulated externally

Parameters

string $name

Returns: bool

Implemented in Layout, and Proxy.

◆ removeOutputElement()

removeOutputElement ( $name )

Remove an element from output

Parameters

string $name

Returns: LayoutInterface

Implemented in Layout, and Proxy.

◆ renameElement()

renameElement	(	$oldName,
		$newName
	)

Rename element in layout and layout structure

Parameters

string	$oldName
string	$newName

Returns: bool

Implemented in Layout, and Proxy.

◆ renderElement()

renderElement	(	$name,
		$useCache = `true`
	)

Find an element in layout, render it and return string with its output

Parameters

string	$name
bool	$useCache

Returns: string

Implemented in Layout, and Proxy.

◆ reorderChild()

reorderChild	(	$parentName,
		$childName,
		$offsetOrSibling,
		$after = `true`
	)

Reorder a child of a specified element

If $offsetOrSibling is null, it will put the element to the end If $offsetOrSibling is numeric (integer) value, it will put the element after/before specified position Otherwise – after/before specified sibling

Parameters

string	$parentName
string	$childName
string \| int \| null	$offsetOrSibling
bool	$after

Returns: void

Implemented in Layout, and Proxy.

◆ setBlock()

setBlock	(	$name,
		$block
	)

Save block in blocks registry

Parameters

string	$name
Element\BlockInterface	$block

Returns: LayoutInterface

Implemented in Layout, and Proxy.

◆ setChild()

setChild	(	$parentName,
		$elementName,
		$alias
	)

Set child element into layout structure

Parameters

string	$parentName
string	$elementName
string	$alias

Returns: LayoutInterface

Implemented in Layout, and Proxy.

◆ unsetChild()

unsetChild	(	$parentName,
		$alias
	)

Remove child element from parent

Parameters

string	$parentName
string	$alias

Returns: LayoutInterface

Implemented in Layout, and Proxy.

◆ unsetElement()

unsetElement ( $name )

Remove block from registry

Parameters

string $name

Returns: LayoutInterface

Implemented in Layout, and Proxy.

The documentation for this interface was generated from the following file:

vendor/magento/framework/View/LayoutInterface.php
